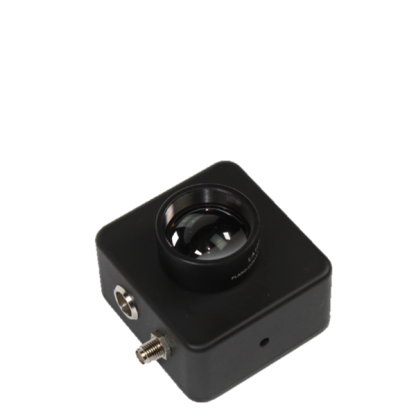

LiFi Receiver

  • Plug-and-play solution for VLC R&D
  • Compatible with NI platforms USRP and PXI
  • 25 MHz bandwidth
  • 170° detector FOV
  • NLOS Operation
  • Interchangeable lens mechanism
  • 50 Ohm I/O impedance

Request quote


LiFi Receiver is a custom-design front-end for visible light communications (VLC). It has a wide bandwith (20 MHz) to support even the most demanding video streaming applications. The receiver features a photodetector with a field-of-view of  170° enabling a robust performance in non line-of-sight conditions.

Request Datasheet

DC Input Voltage (Max) 24 V
AC Output Voltage (Typical) 200m Vpp
3dB Bandwidth 100kHz to 25 MHz
Output Impedance 50 Ohms
Operating Temperature 5° to 35° C
Storage Temperature 0° to 50°
Package LiFi Receiver

1” Lens Holder

24V Power Supply

Part Number LIFIRXFE
